Logical Functoids Cannot Connect to XML Attribute Nodes

After working with BizTalk Server for over ten years, I was amazed to discover only today that the BizTalk 2010 Mapper does not allow you to connect a logical functoid to an XML attribute node!

Logical functoids are “special” in that they don’t output values when connected to a node in the target schema. Rather, the Boolean value that they do emit is often used as a conditional flag for determining the connected node’s appearance in the result. If a logical functoid connected to a record or an element evaluates to “false”, then the record/element will not be present in the output.

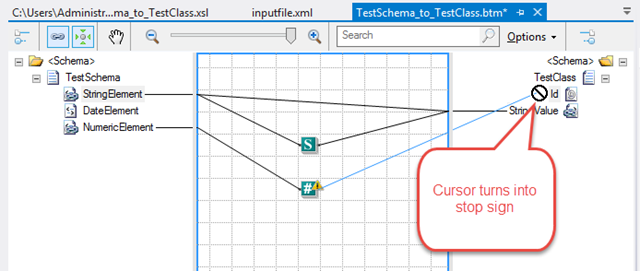

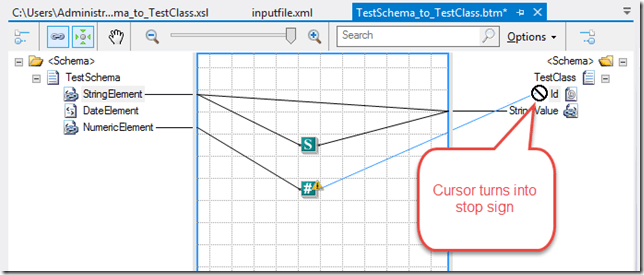

The question is… why doesn’t this work for attribute nodes as well??  Try to connect a logical functoid to one and the cursor turns into the dreaded “No you don’t!!” symbol, as shown in this screenshot:

MapToAttribute_NOT_v2

Read more of this post

Using BTDF to Deploy Pure WCF Services

The BizTalk Deployment Framework (BTDF) is widely used as a tool for managing the complex deployment requirements for BizTalk Server integration solutions. With each iteration, it gets better & better. The latest version (still in Beta) now supports BizTalk Server 2013 R2.

Of course at Mexia we use this tool quite regularly for our clients, enjoying the simplicity it affords in automated deployment and management of environment-specific configuration. However, the ESB that we often provide our customers includes more than just BizTalk applications; it includes some services implemented in pure WCF. Although these services do utilise BAM for tracking and SSO for configuration management, those features do not require the empty BizTalk application that is generated from using the BTDF.

After consultation with BTDF author Thomas Abraham and some helpful tips on this thread, I spent some time putting together a BTDF project file that would deploy just the bits that are needed for WCF – and nothing more. It has been very successful so far, providing for a consistent build definition and deployment process across the entire ESB platform.  I’d like to share it with you here.

But before we go into the details, there are a few things you need to be aware of regarding this solution: Read more of this post

Using AS2 Bridges in MABS (post August 2014 Update)

In my previous post about using the new EDI bridges in Microsoft Azure BizTalk Services (MABS), I promised to follow up with an example of using the AS2 bridge type – so here it is.

Applicability Statement 2 (AS2) is all about establishing security and reliability when transmitting B2B messages over HTTP/S. It provides for digital signing and encryption as well as acknowledgements via Message Disposition Notifications (MDN), which also leads to support for Non-Repudiation (NRR).

Like BizTalk Server, MABS provides support for AS2 with EDI transactions; in fact, the latest update has enhanced this experience with additional symmetric key encryptions including AES, DES3 and RC2 as well as MD5, SHA1 and SHA2 for MIC calculation. The main difference in this latest update, though, is that the AS2 bridge and the associated agreement are configured separately, just like the EDI bridges themselves now are. Understanding the sequencing of these bridges and how they connect is key, however, and may not be readily apparent from the current documentation – hence the reason for this article.

Scenario for Using AS2 Bridges

For the purposes of this post, I am going to expand on the demo used in the previous post by introducing AS2 bridges. I am not bothering to configure certificates, because this process has not changed since MABS was released, and it is well-documented on MSDN. Besides that, the focus of this article is on how the bridges connect, not so much about the implementation of encoding, etc. (But if you want to see how the certificates are used and the relationship of the public & private keys, I suggest having a look at this page which lays out the whole process in a very clear diagram.)

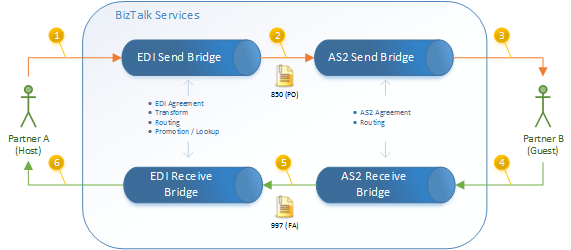

Let’s assume that Partner B requires the AS2 protocol for all B2B exchanges. The pattern in BizTalk Services therefore makes use of both EDI bridges and AS2 bridges, with separate agreements established for both:

AS2-Exchange

Read more of this post
