Testing for Empty/Nil/Missing Source Nodes in BizTalk Maps

Re-posted from another blog – original publish date 27 Aug 2012

Scenario: You are mapping an optional node in your source schema to an optional node in your target schema. But… the target schema has stricter validation rules and cannot accept empty or “nil” nodes, whereas the source schema can.

By default, if the source node doesn’t exist, it won’t be output in your target. No problems there. But… what if the source node is empty or null?

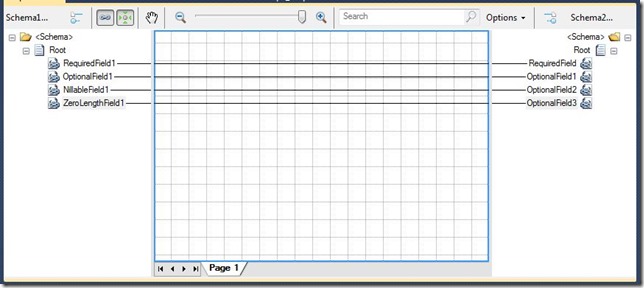

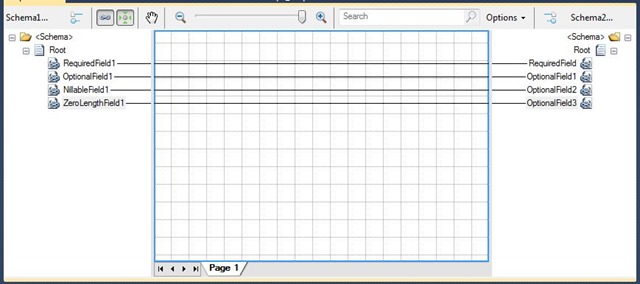

Let’s look at this mapping example:

BadMap

Read more of this post

WEBCAST: Schema Validation in BizTalk 2010

Just posted a new webcast on how to use out-of-the-box pipeline components to validate XML schemas for incoming messages:

http://youtu.be/4-Q9Ddy7-Tg

This is important because by default, BizTalk does not perform schema level validation on incoming messages, or even in map execution. This webcast shows two different ways that validation can be enabled, though.

Note that although BizTalk 2010 is used to demo the methodologies,  both approaches will work in all versions of BizTalk Server from 2006 onwards.

The slide deck for this webcast can be found on my SlideShare page.

Keep an eye on the Brisbane BizTalk User Group YouTube channel as more webcasts will follow!

Duplicate Namespace Issue with Schema Validation in Pipeline Components

Today I was tasked with enabling XML schema validation for an existing WCF receive location in BizTalk. The client was already using the out-of-the-box XmlReceive pipeline, so I figured this would be short work, finished by lunchtime after all the regression tests had been run. Little did I suspect that I would run into a snag that would enlighten me to a new BizTalk “feature”.

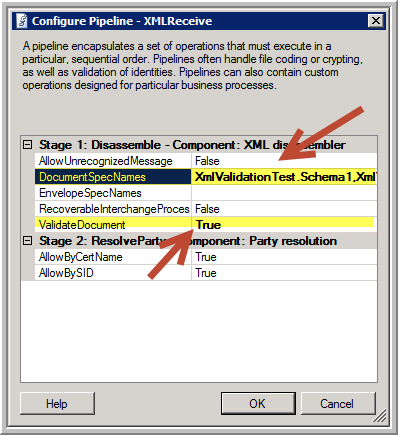

Because of a compressed time schedule, we wanted to avoid having to add a new custom pipeline to the solution, even one as simple as containing a standard XmlValidator component. So instead, I opted to use port-based configuration by enabling validation within the XmlDissembler component in the existing XmlReceive pipeline. Of course, this does require specifying the list of specific schemas in the DocumentSpecNames property on the port instance:

SchemaValidation-Settings

The trick here, of course, is to ensure you get these specifications correct, as they need to be fully qualified assembly (FQN) references. Moreover, if you are expecting multiple message types, you need to separate the entries with a pipeline (“|”) delimiter, something not so obvious if you don’t read the Microsoft documentation. Even less obvious is how to deal with multipart schemas that contain multiple root nodes (at least this blog post sheds some light there).

Read more of this post
