Using Azure Hybrid Connections to Consume an On-Premises WCF Service from the Cloud

Microsoft introduced Hybrid Connections a few weeks ago, a [currently] free version of BizTalk Services that allows you to seamlessly connect Web Sites and Mobile Services hosted in Azure to LOB systems residing within your organisation’s network. Similar to Service Bus Relays, there is no need to open inbound firewall ports as a locally installed agent can establish the connection to Azure from within your network. To help support this feature, Microsoft also introduced a free tier of BizTalk Services specifically to accommodate Hybrid Connections.

The most obvious question asked by most is, “Will this replace Service Bus Relays?”.  After all, they do seem very similar in concept. Michael Stephenson wrote an excellent blog post addressing this very question and identifying the key differences as well as the situations you would most likely choose one technology over the other.

What has sparked my post here is that the only examples I found highlighting this new feature were aimed at connecting to on-premises databases. While this is certainly impressive and useful (especially since your Azure Web Site can use the exact same connection string you would use for on-premises access!), it left me wondering how Hybrid Connections could be used to expose WCF Services within an internal network – without the need for configuring relay bindings.  My interest in this capability has arisen from some recent experiences building hybrid solutions for our clients:

  • Some proprietary web services are not always accessible to the necessary custom configuration, either because they weren’t implemented in .NET or because of other constraints; this meant having to create  “wrapper” WCF services just to host the necessary relay bindings;
  • I found the Relay Services to be unstable and unpredictable, and often logging mysterious errors. I also found a need to write custom code to implement auto start and recoverability on faults.

So, I decided to give Hybrid Connections a test to see how easy it is to achieve the same thing:

  • I created a simple WCF service and published it to a machine within our company’s network, and proved that I could only access this service when logged  into our VPN.
  • I then created a simple ASP.NET website that calls the service and displays the results to the screen.
  • I created an Azure Web Site and published the ASP.NET web site to this location.
  • Using the excellent step-by-step directions found here, I logged into the new Preview Portal and enabled  Hybrid Connections for this website, creating a new BizTalk Services instance in the process.
  • Finally, I downloaded the “On-Premises Setup” component and installed it on the machine where my WCF service was hosted.

The result? I could access the service via my Azure Web Site whether I was logged into the VPN or not! 🙂  And the best part was there were no modifications required to the WCF service itself.

Technical Details

If you’re interested in the details of how I proved this, here they are.

The WCF service very simply has one operation on it:

namespace EchoService
{
public class EchoService : IEchoService
{
public string Echo(string value)
{

            return string.Format(“[{1}] You entered: {0}”, value, Environment.MachineName);
}
}
}

Notice that I echo the machine name – just to prove where the called service is being hosted.

The ASP.NET service uses a very simple web form that calls the WCF service and displays the result:

public partial class WebForm1 : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
}

   protected void Button1_Click(object sender, EventArgs e)
{
EchoService.EchoServiceClient client = new EchoService.EchoServiceClient();
lblResult.Text = client.Echo(txtInput.Text);
}
}

When configuring the Hybrid Connection, I simply used the server name and port 80 (if I was hosting the service over SSL, I suppose I’d use port 443):

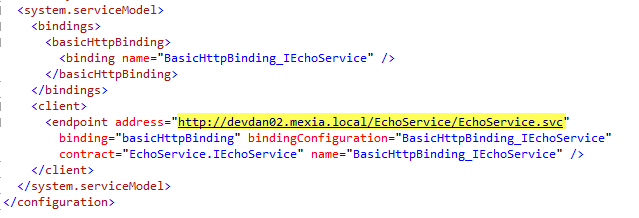

Finally, I ensured that the when setting  the address in the client WCF binding within the Web Site configuration file, I used the same hostname specified in the Hybrid Connection configuration (note that you’ll need to set this prior to publishing the service to Azure):

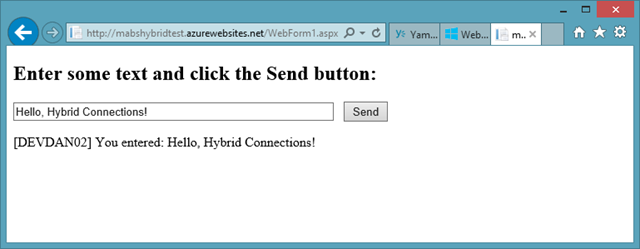

Once this is published, you can browse the Web form, enter the data and see the result of calling the service (including the machine name of the server hosting the WCF service):

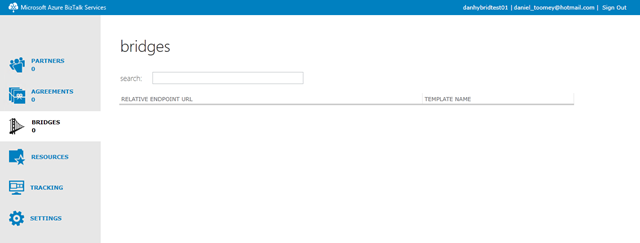

Unfortunately, you can only use Hybrid Connections from a Web Site or Mobile Service client hosted in Azure at the moment. Knowing that every BizTalk Services bridge has an HTTP receive endpoint, I looked for my Hybrid Connection bridge in the BizTalk Services Management Portal – but alas, discovered it was invisible:


This seems to have dashed any hopes of using this bridge to connect to an on-premises service from another external non-cloud client. If that’s your requirement, I’m afraid that Azure Service Bus Relay Services are still your best option.

Why Would I Use This?

Again, Michael Stephenson’s article goes a long  way to explaining the various scenarios for using Hybrid Connections vs. Service Bus Relays, but when it comes to calling internal web services, these are my top drivers for using the former:

  • No modification is required to the target service OR it’s configuration
  • The service doesn’t have to be implemented in .NET (as long as you can use a .NET WebClient to consume it)
  • No custom code is required; it can be configured entirely within the Azure Management Portal (preview version)
  • It  is  (hopefully?) more stable & reliable that Service Bus Relays (would need some extensive testing to prove this)
